Challenge
Hotel and commercial laundries wash many types of linen. The washer needed programs for each fabric type and soil level, precise control of water, temperature and detergent, and efficient, reliable operation that uses water and energy carefully.
Solution
Fill, wash, rinse and extract now run automatically, and the program controls water level, temperature and detergent dosing. Multiple programmable recipes cover different fabrics and soil levels. The control system runs on a Wecon PLC with a Wecon HMI.

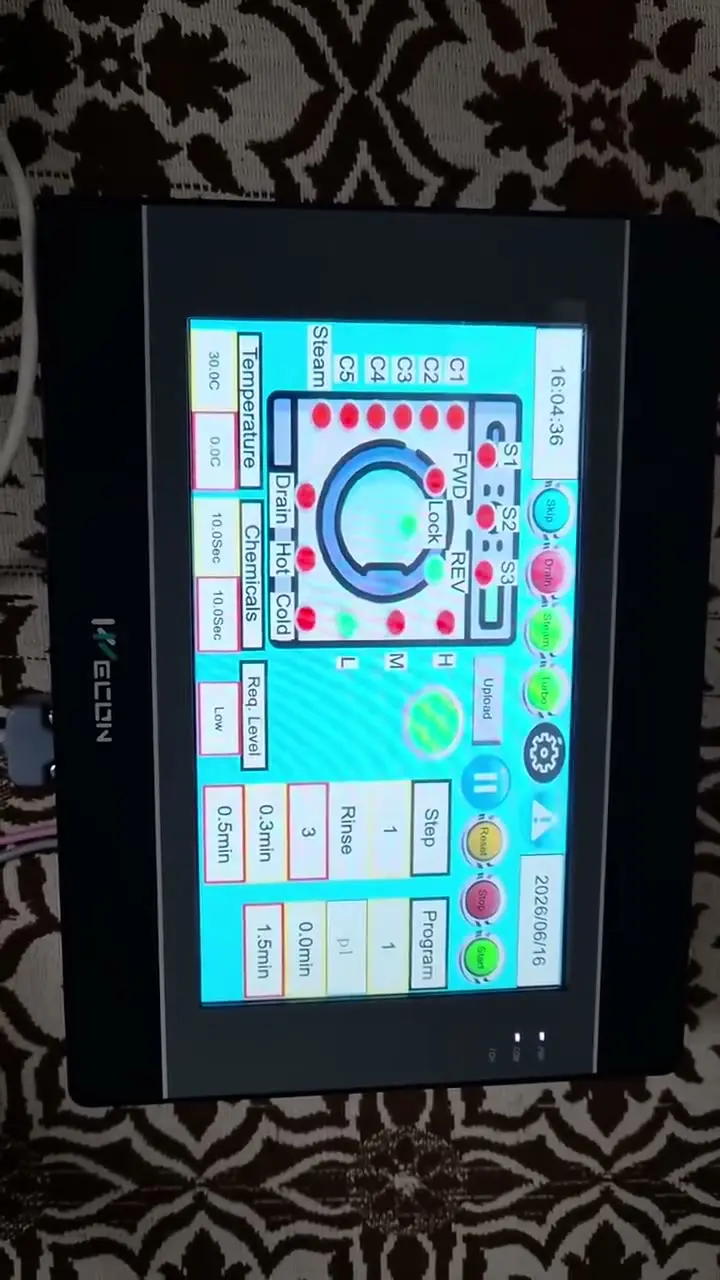

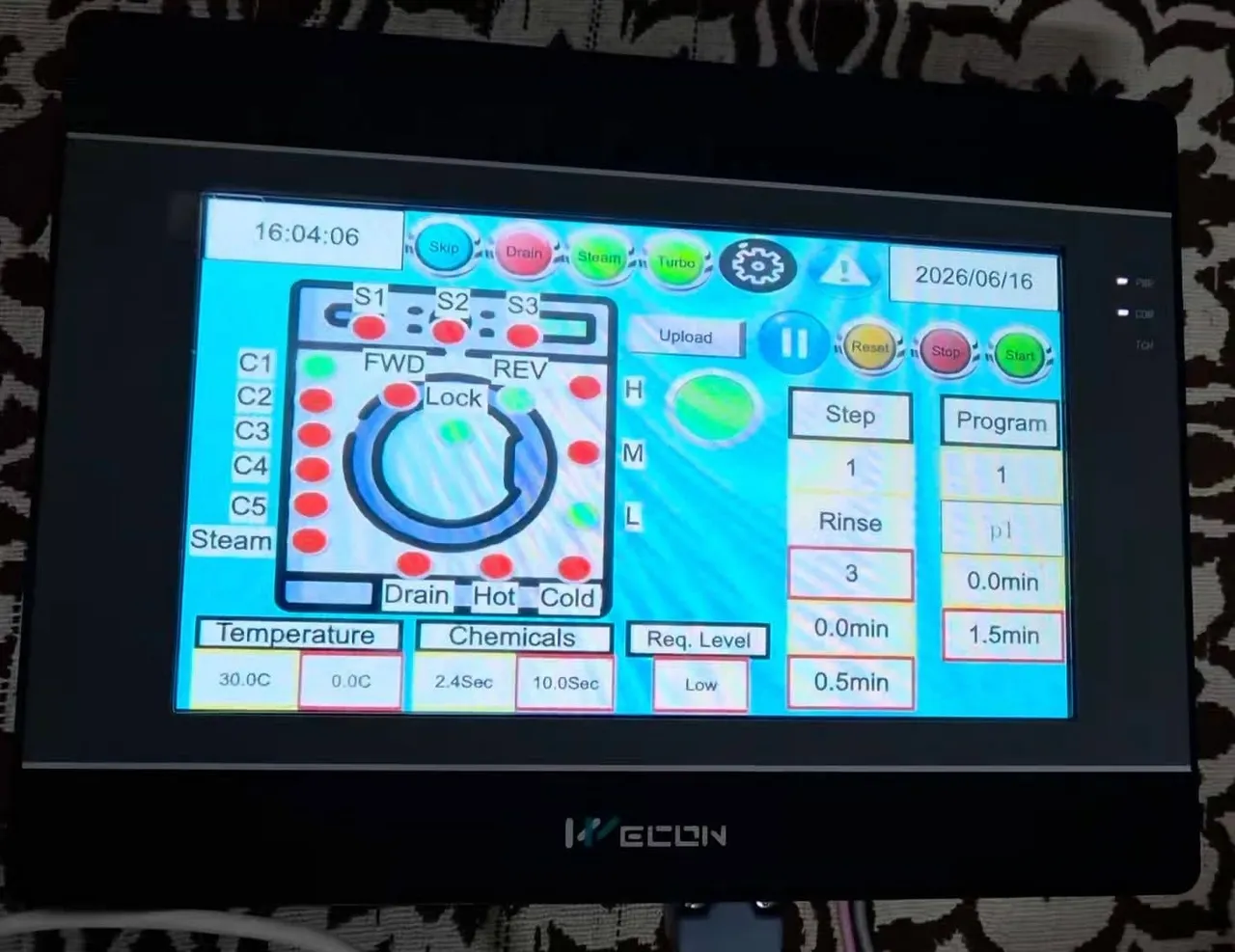

The HMI shows real-time status, alarms and fault messages, safety interlocks protect the operator and the machine, and the system logs operating data for performance monitoring. Before installation, the program was run and checked on the HMI on the bench.
Scope of work
- Wecon PLC programming
- Wecon HMI design
- Automatic fill, wash, rinse and extract cycles
- Water level, temperature and detergent dosing control
- Multiple programmable wash recipes
- Real-time alarms and fault indication
- Safety interlocks
- Data logging for performance monitoring
Result
The washer runs each program automatically for the fabric and soil level selected, with controlled water, temperature and dosing, and operators see status and faults on the HMI.
