Challenge
Pipe tests had to be accurate, reliable and repeatable, and every result had to be documented for quality control and traceability without manual record keeping.
Solution

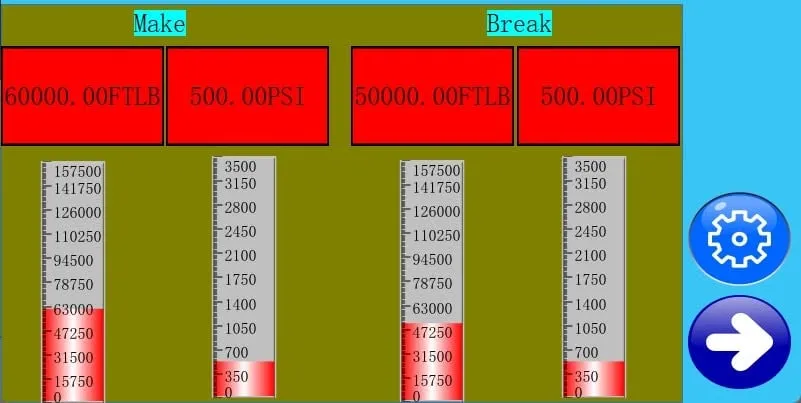

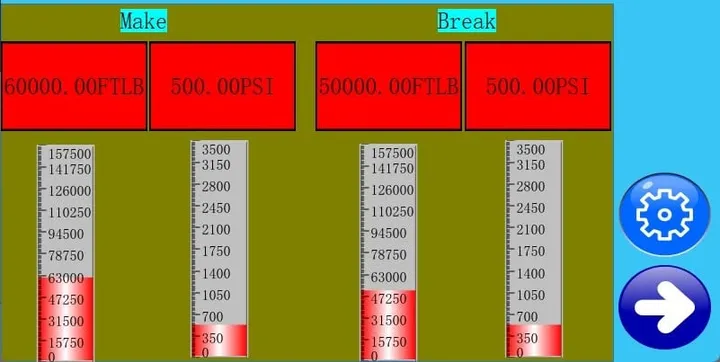

The test rig now shows make and break values in ft·lb, with the matching pressure in psi, and bar graphs show the live readings. The control system runs on a Wecon PLC with a Wecon HMI.
The system generates test reports automatically, including the make and break values of each test.
Scope of work
- Wecon PLC programming
- Wecon HMI design
- Measurement and display of make and break values
- Live bar-graph readings
- Automatic test-report generation
- Data for quality control and traceability
Result
Each test produces an automatic report with its make and break values, so quality control keeps a record of every test without writing it by hand.
